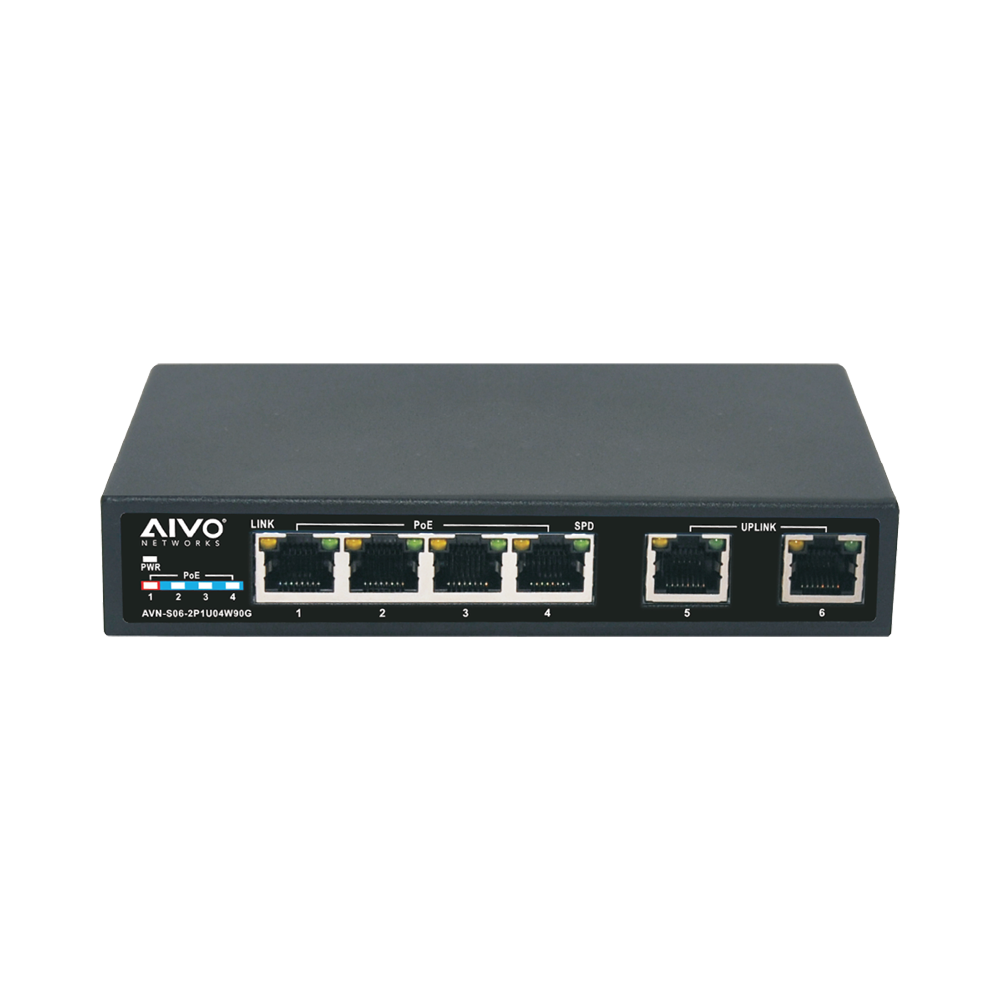

AVN-S06-2P1U04W90G

• IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af,
IEEE802.3at
• Provides 6 10/100/1000Base-TX ports
• 4 PoE Ports (Ports 1-4), PoE Port 1 provides 60W max, Ports 2-4 provide
30W max. High back-plane bandwidth of 12Gbps
• 1K entry MAC Address Table with Auto-Learning and Auto-Aging.
• IEEE802.3x Flow control for Full-duplex Mode and backpressure for
Half-duplex Mode
• Surge protection for power and data ports
• Supports PoE IEEE 802.3af or IEEE802.3at compliant
Powered Device (PD)
• Compact metal case for desktop or wall-mounting.
• EMI standards comply with FCC, CE Class B
