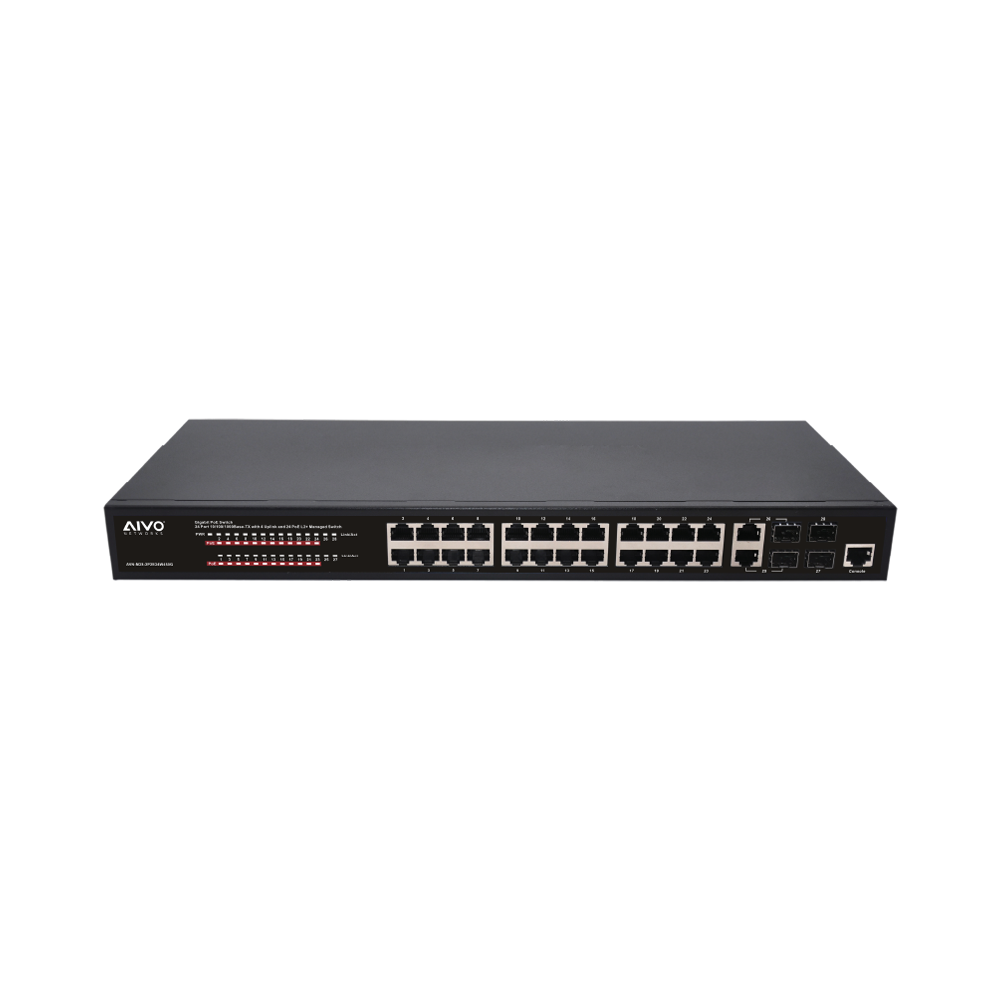

AVN-M28-2P2E24W450G

• Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
IEEE802.3af IEEE802.3at
• Provides 24 10/100/1000 Base-TX ports, 2G Combo Ports and 2 1000
1000 Base-X SFP
• Provides 24 PoE injector and build in AC power
• High back-plane bandwidth 56Gbps
• Support standard IP/extend IP/MAC IP/ARP ACL
• IGMP snooping and IGMP query mode for multi-media application
• Port mirror and bandwidth control
• Supports GVRP function
• IEEE802.3x flow control
• Support port based VLAN/802 .1Q Tag VLAN
• Support IEEE802.3ad port trunk with LACP
• Support spanning tree protocol IEEE 802.1d
• Supports IEEE 802.1p class of service
• Support IEEE 802.1x user authentication
• Support broadcast storm filter
• Support DHCP server and client
• Support system event log
• Support command line interface management
• Management by Web/SNMP/Telnet/Console
• Surge protection for power port and data ports
• EMI standards complies with FCC, CE class B
