AVYCON, Thermal Solutions

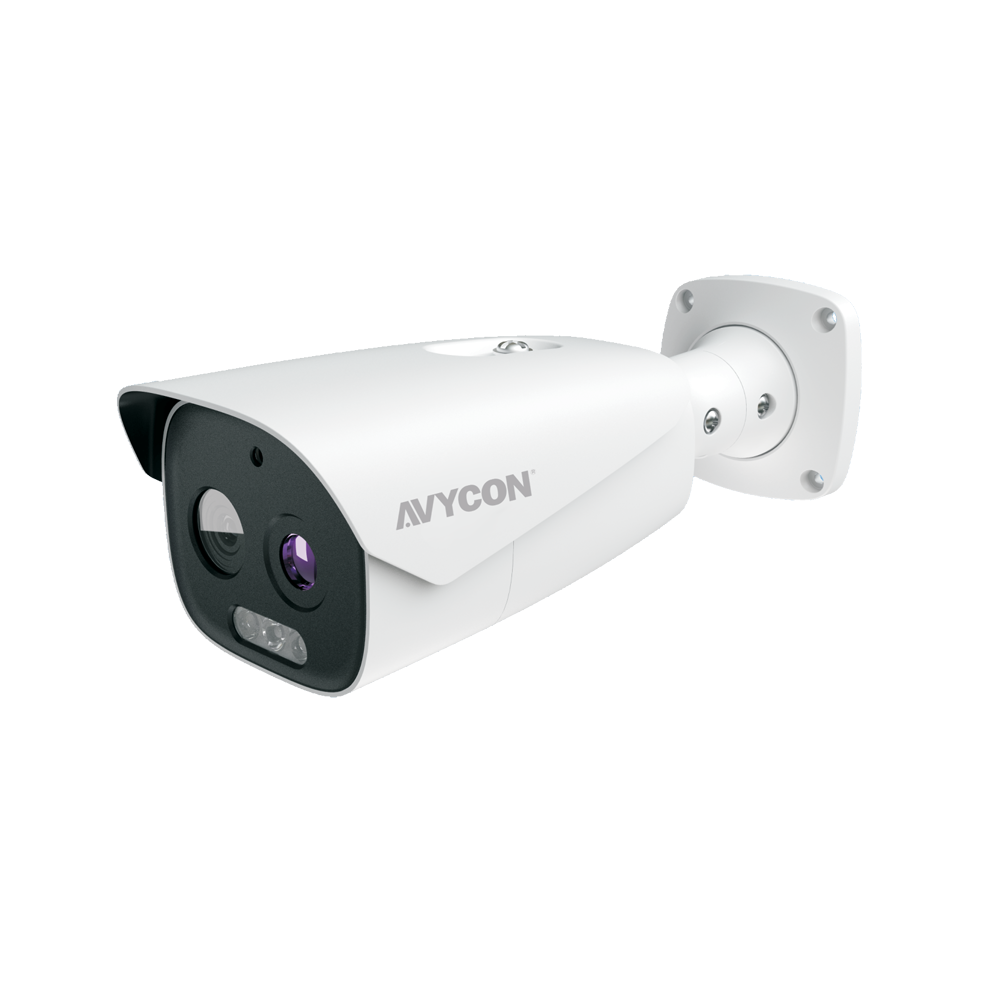

AVC-BTDND08FT-DU
BODY TEMPERATURE DETECTION NETWORK CAMERA
Thermal:
• 384 x 288 uncooled detector
• 17μm, NETD: <35mK @77ºF (@25ºC), F#=1.0
• 12.3mm thermal imaging lens
• Temperature accuracy: ±0.54ºF (0.3ºC) with black body
• ACB, DPC, 3D DNR, DDE
• Multi-palette: white, black, pseudo-color
• Temperature exception alarm
• 384 x 288 uncooled detector
• 17μm, NETD: <35mK @77ºF (@25ºC), F#=1.0
• 12.3mm thermal imaging lens
• Temperature accuracy: ±0.54ºF (0.3ºC) with black body
• ACB, DPC, 3D DNR, DDE
• Multi-palette: white, black, pseudo-color
• Temperature exception alarm
Visible Light:
• 5MP (2592 x 1944) @ 30 fps
• 1/2.7” BSI +NIR progressive CMOS image
• Min. Illumination:
Color: 0.0125lux@F2.0; AGC On
B / W: 0.008lux@F2.0; AGC On
• 8mm visible light lens
• 3D DNR, true WDR (120dB), HLC, BLC
• Built-in white light and loudspeaker
• Captures 30 faces simultaneously
