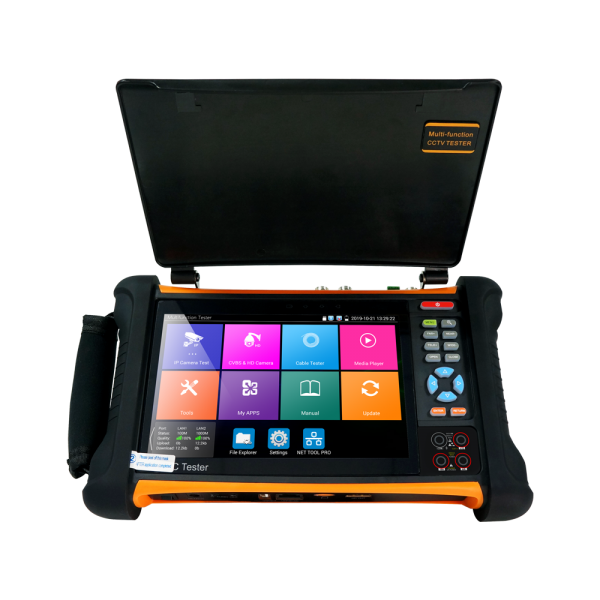

AIVO-70A8KM

• 7” Touch screen with 1920 x 1200 resolution
• Supports up to 8MP(4K) HD-CVI/HD-TVI/AHD for HD Analog testing and
CoC/UTC control
• Will automatically recognize HD-CVI/HD-TVI/AHD formats and
resolutions for testing
• Supports H.265/H.264 decoding up to 4K resolution for IPC testing
• HDMI Input with support for up to 4K / 30fps
• HDMI Output with support for up to 4K / 30fps
• VGA input with support for up to 1920 x 1200 / 60 fps
• DC12V @ 3A, DC24V @ 2A, 802.3at/af (up to 25.5 W) PoE power output
• Support for WiFi connection and also ability to create a WiFi Hotspot
• Includes ONVIF testing tool, which can modify IPC settings &
generate reports
• Ethernet Cable & RJ-45 Termination testing
• Digital cable tracer, cable search and UTP cable testing (customizable)
• Video level Meter
• Digital Multi-meter for AC/DC Voltage, AC/DC Current, Resistance
